12 Color-Coded 0.9mm Unjacketed LC UPC Fiber Pigtails OS2 Single Mode 1m (3ft)

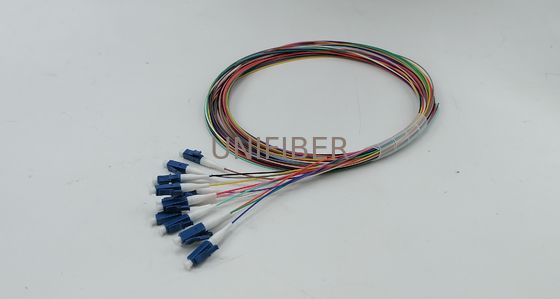

Grande immagine : 12 Color-Coded 0.9mm Unjacketed LC UPC Fiber Pigtails OS2 Single Mode 1m (3ft)

Dettagli:

Place of Origin:	CHINA
Marca:	Unifiber or OEM
Certificazione:	ROHS
Model Number:	12 Color-Coded Fiber Pigtail

Termini di pagamento e spedizione:

Minimum Order Quantity:	10
Prezzo:	Negoziabile
Packaging Details:	Carton
Delivery Time:	5~8days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contatto

Descrizione di prodotto dettagliata

Product:	12 Fiber Pigtails	Connector:	LC/UPC
Fiber Type:	OS2	Cable:	0.9mm Tight Buffer
Color:	12 Color-Coded	Cable Jacket:	Unjacketed
Length:	1m (3ft)

12 fibers optic pigtails are ideal for fusion splicing the required fiber connectivity for structured cabling systems including Data Centers, Broadband CATV, PON (Passive Optical Network), WDM or DWDM multiplexing, FTTH and voice services in ATM and SONET metropolitan and access networks.The OS2 bend insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails and this will make the installation and maintenance more efficient.

Features

G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius

Color-coded for Easy Matching of 0.9mm Fiber to Be Spliced

Easy-strip 900µm Tight-buffered Coating

Precision Zirconia Ferrule Connectors Ensure Low Loss

Support Both Fusion and Mechanical Splicing

Application

Optical fiber pigtails can be used in optical fiber communication systems optical fiber data transmission, optical fiber CATV, optical test equipment, fiber optic sensors, etc.

Specification

Parameter	Singlemode Fiber			Multimode Fiber
Parameter	PC	UPC	APC	PC
Insertion Loss(dB)	≤0.3	≤0.2	≤0.3	≤0.3
Return Loss(dB)	≥45	≥50	≥60	≥20
Exchangeability(dB)	≤0.2
Plug-pull life(times)	＞1000
Operating temperature(℃)	-40~+75
Storage temperature(℃)	-45~+80
Fiber model	φ0.9mm, φ2.0mm, φ3.0mm
